SC UPC 1x8 PLC Splitter Micro Module Type 1310 / 1550nm Wave Length

Name: SC UPC 1x8 PLC Splitter Micro Module Type 1310 1550nm Wave Length
Brand: Haiyu Optical
Price: 1 USD

Quality SC UPC 1x8 PLC Splitter Micro Module Type 1310 / 1550nm Wave Length for sale

Brand Name : Haiyu Optical

Model Number : HYG-SPL-SC-1*8

Certification : CE, ISO9001, Rohs

Place of Origin : China

MOQ : 1 pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram, L/C

Supply Ability : 1000pcs per day

Delivery Time : 2-3 working days

Packaging Details : each packed in pe bag, 400-600pcs/carton

Product name : Fiber Optic PLC spliter/Planar Lightwave Circuit Splitter

Capacity : 1x8

Connector : SC/APC/UPC

Wavelength : 1310nm/1550nm

Operating temperature : -40 to +85 degree

Warranty : 1 years

Fiber type : SMF-28e or customer specified,Custom

Application : FTTH FTTB FTTX Network,Telecommunication/Fiber Optic CATV/Multimedia

Contact Now

1x8 PLC Splitter 900um SC UPC fiber optic splitter Micro Module Type

Product Description:

PLC splitter is an optical power distribution component based on silica optical waveguide technology. It is widely used in PON networks to realize optical signal power management.

Specification:

Type	1x4	2x4	1x8	2x8	1x16	2x16	1x32	2x32	1x64
Fiber Type	9/125um SMF28e or customer specified
Operation Wavelength	1260~1650nm
Insertion Loss (dB)(Typ)	<7.1	<7.3	<10.0	<10.3	<13.5	<14.0	<16.8	<17.3	<20.0
Insertion Loss (dB)(Max)1	<7.5	<7.7	<10.5	<10.8	<14.0	<14.7	<17.5	<18	<20.3
Uniformity (dB)(Max)	<0.7	<1.0	<1.0	<1.2	<1.5	<2.0	<2.0	<2.5	<2.5
Polarization Dependent Loss (dB)(Max)	<0.3					<0.40	<0.30	<0.40	<0.3
Directivity (dB)(Min)	≥55
Return Loss (dB)(Min)	≥55
Operating Temperature ( oC)	-40 to +85
Storage Temperature ( oC)	-40 to +85

Insertion loss is excluding connector loss at typically 0.2dB.

Benefits:

• Low insertion and low PDL

• Excellent environmental stability

• Compliant with Telcordia GR-1209/1221-Core

• Cable sizes 250μm, 900μm and 3mm

• Good uniformity

Product application:

• FTTx (FTTP, FTTH, FTTN, FTTC)

• Passive Optical Networks (PON)

• Local Area Networks (LAN)

• CATV system

• Test equipment

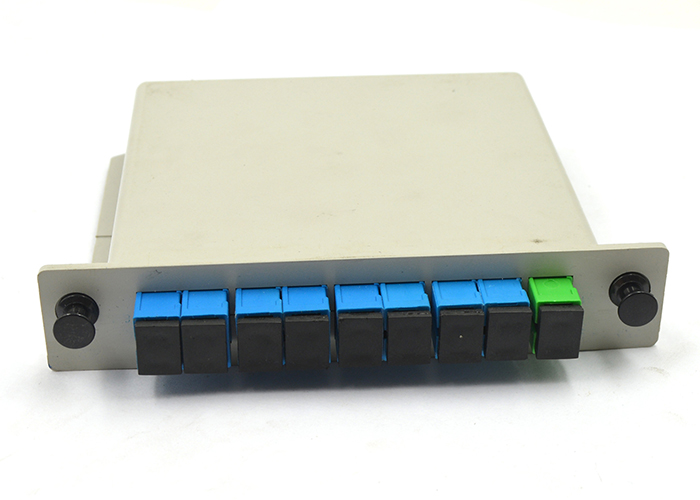

SC UPC 1x8 PLC Splitter Micro Module Type 1310 / 1550nm Wave Length
